adjusted Feb 2021

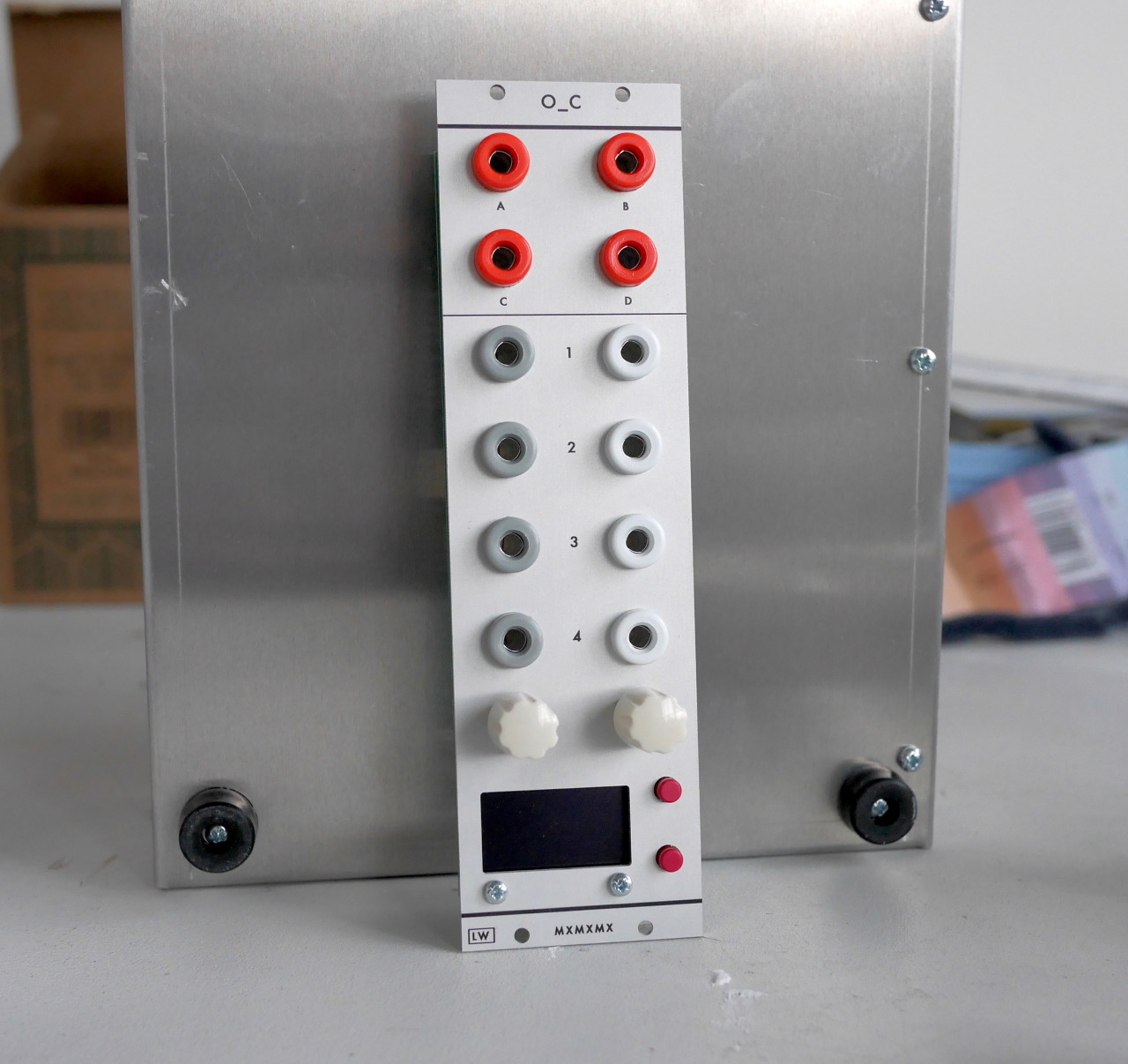

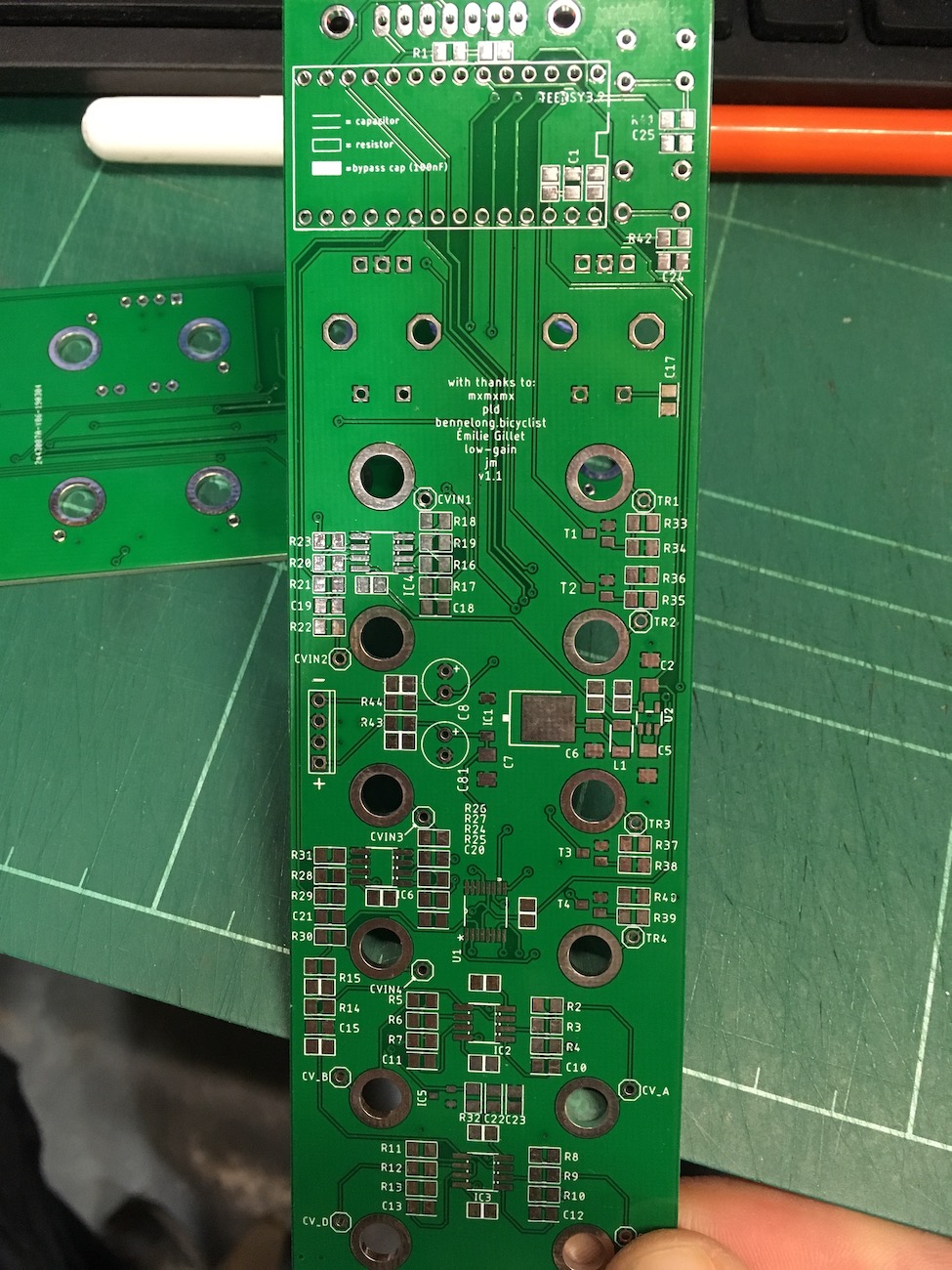

Panel for Hale Ornament and Crime (O_C) PCB set. PCB set is main board and screen PCB.

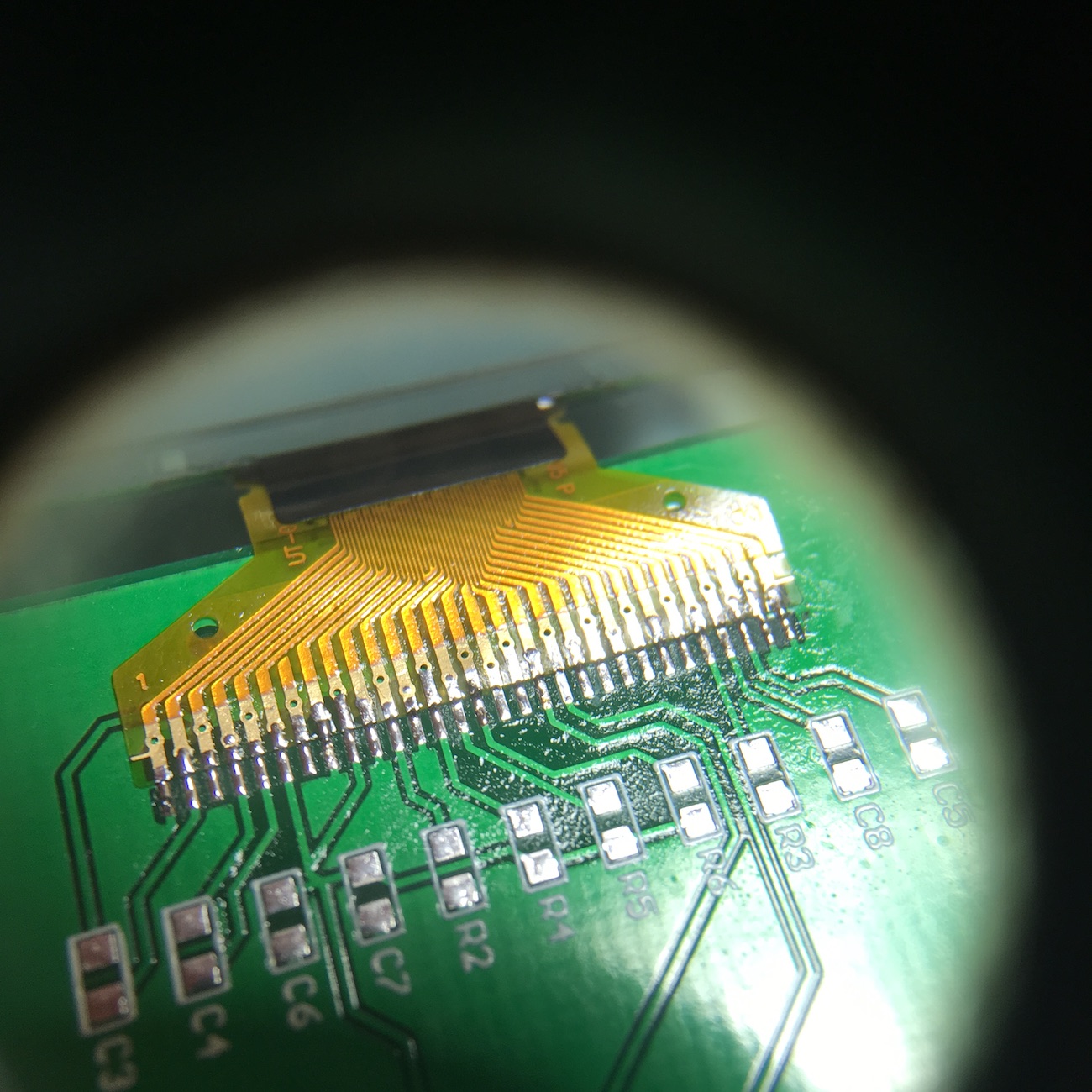

BOM – mainly this is just the PCB parts so no bananas or power connectors etc, but it does include the 0603 parts for the screen, the encoders, the tact switches and caps (as shown above the switch caps are red so if you want black change them) – the BOM also includes the TEENSY so if buying elsewhere remove it. As ever double check and sub for backordered parts before ordering.

I get the encoder knobs from Thonk. The screen I used came from BuyDisplay I think.

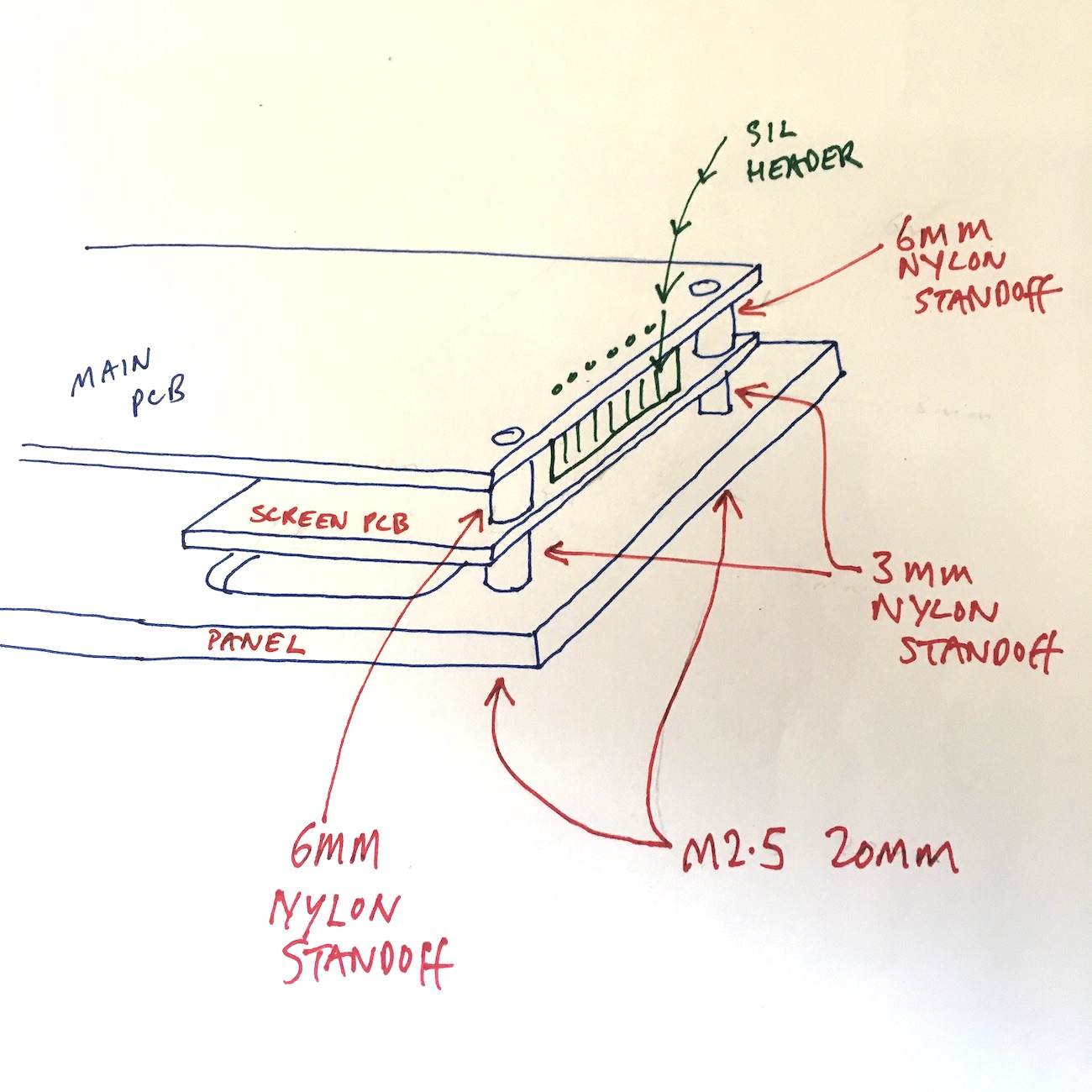

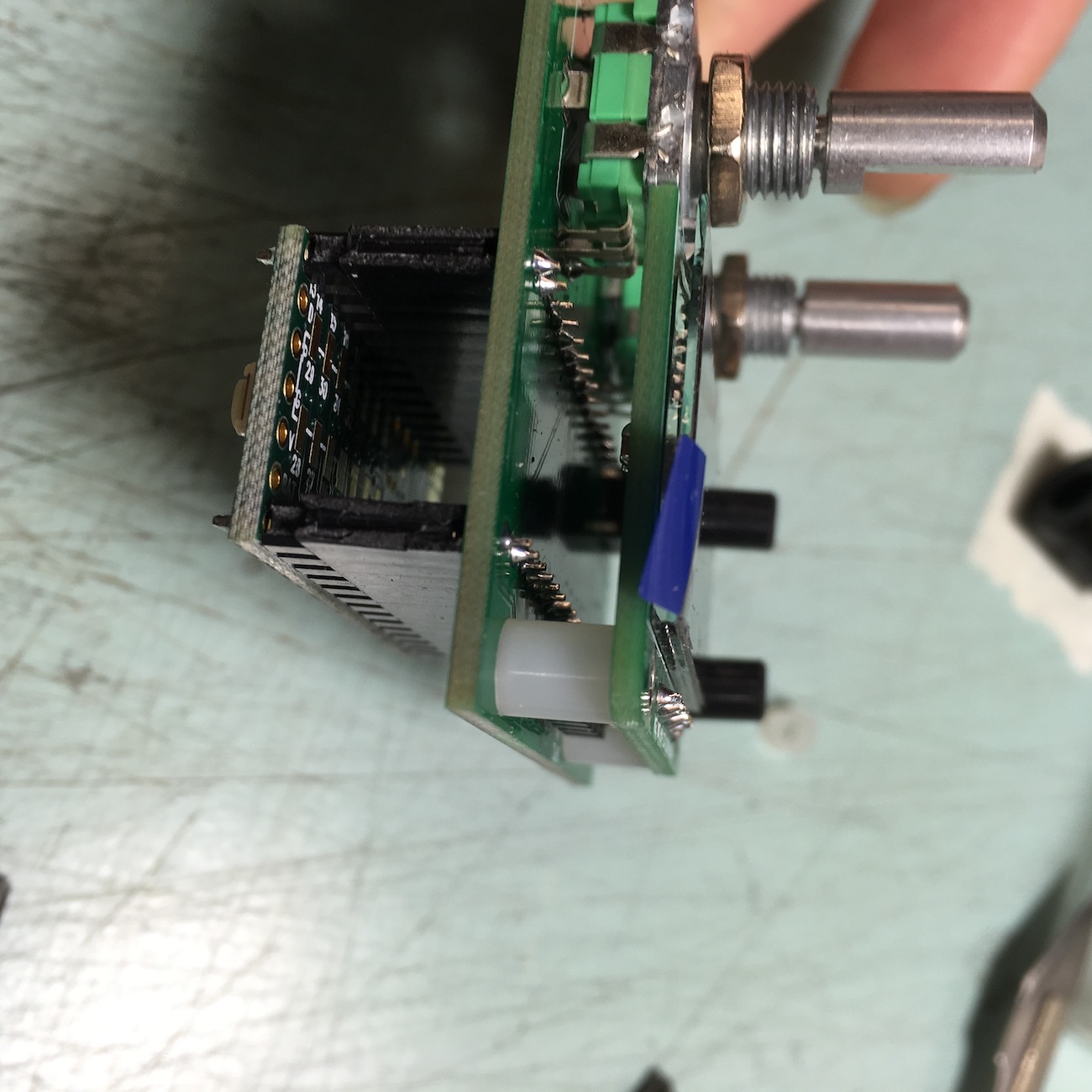

The bits not included (banana’s, screws, SIL connectors for screen and Teensy, power header & cable, nylon standoffs) are pretty general and will likely be in your parts box, see below for construction picture)

660-RK73H2ATTD10R0F | 2
660-RK73H2ATTDD1000F | 4
660-RK73H2ATTD2200F | 4
660-RK73H2ATTD5100F | 2
660-RK73H2ATTD2001F | 1
660-RK73H2ATTD1002F | 5
660-RK73H2ATTDD2492F | 4
660-RK73H2ATTD3302F | 8
660-RK73H2ATTDD4702F | 2
660-RK73H2ATTD7502F | 4
660-RK73H2ATTD1003F | 12
71-CRCW0603-390K-E3 | 1
858-EN11-HSM1BF20 | 2
603-CC805JRNPO9BN220 | 4
603-CC805JRNPO9BN561 | 4
603-CC805KRX7R9BB104 | 18
80-C0805C474K5R7210 | 3
603-CC805KKX7R9BB105 | 2
963-TMK107ABJ225MA-T | 5
80-C0805C106K3P | 4
81-GRM188R61E106KA3D | 1
647-UHV1V470MDD | 2
863-MMBT3904LT1G | 4
511-LD1117DT50C-TR | 1
584-ADP150AUJZ-3.3R7 | 1
926-LM4040DIM350NOPB | 1
963-LB3218T100K | 1
595-OPA2172IDR | 2
579-MCP6002-I/SN | 2
595-DAC8565ICPW | 1
485-2756 | 1
612-TL1105SPF100Q | 2
612-1R-RD | 2
