20th Mai 2020 – Added info

Elby have redesigned the PCB for the CGS 116, the new one is designated CGS 516. This page is currently reflecting the build for the CGS 116 PCB, so I will need to amend the BOM at some point.





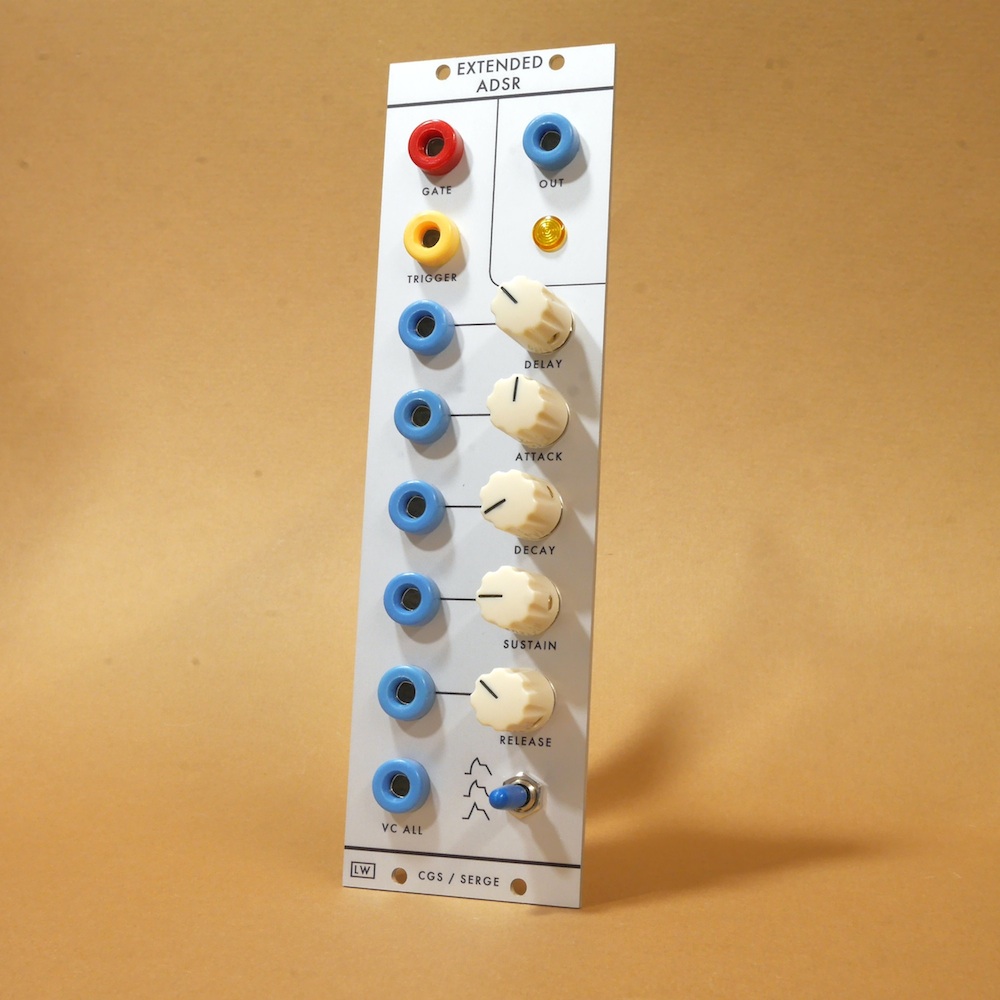

BUILD INFO for CGS 116 PCB

All CGS build info is now at Laurie Biddulph’s Elby site (where you can also buy the full range of CGS and CGS/Serge PCBs and other great stuff)…

Look at THIS PAGE for more information. Archive page from Ken’s original site is here:

http://www.synthpanel.com/modules/cgs116_env.html

BOM

Mouser BOM:

271-330-RC | 2
271-1K-RC | 1
271-2K-RC | 5
271-3.3K-RC | 2
271-8.2K-RC | 1
271-22K-RC | 3
271-33K-RC | 2
271-34K-RC | 1
271-47K-RC | 3
271-47.5K-RC | 4
271-51.1K-RC | 1
271-82K-RC | 7
271-100K-RC | 8
271-110K-RC | 5
271-330K-RC | 4
291-470K-RC | 1
270-2.2M-RC | 1
291-22M-RC | 1
810-FK28C0G1H100D | 1
810-FG28C0G1H470JNT0 | 3
810-FG28C0G1H101JNT6 | 1
810-FG28C0G1H221JNT6 | 2
871-B32529C102J | 1
594-K103Z15Y5VE5TH5 | 5
80-R82EC2220DQ50J | 1
80-R82EC2470DQ60J | 1
667-EEU-HD1H100 | 3
512-BC547CTA | 6
512-BC557BTA | 3
512-1N4148 | 7
623-2743001112LF | 2
593-3000Y | 1
595-TL072IP | 3
512-LM324N | 1
595-CD4001BE | 1
595-CD4016BE | 1
595-CD4069UBE | 1
575-199308 | 3
575-199314 | 4
530-108-0902-1 | 1
530-108-0910-1 | 7
530-108-0907-1 | 1

Copy ‘n’ paste into Mouser BOM uploader.

Notes:

This BOM should be correct, check it. It includes 1K for RLED, you may want to change that depending on your selected LED. The BOM DOES include the banana sockets, the IC sockets and a yellow LED lens, but not the LED, pots, knobs or switch. Nor does it include the panel, the PCB, the CLee bracket or wire etc. It uses TL072 as per build docs. The transistors are BC547 and BC557, again as per build docs. The other thing not included are the power connectors. I get pots and knobs from Thonk, and the other bits – the switch, power header / connectors, LED, wire etc from Rapid.
